Battery holder BS-1220-1 NI DIP
MYOONG is a high-tech enterprise focusing on R&D, production, sales and service of battery peripheral accessories. Main products: battery holders, battery buckles, battery boxes, battery shrapnel and so on. The categories are complete, the samples are varied, and free customization is supported.
Product parameters
| Product model | BS-1220-1 NI DIP | Part number | BS-12-A1AJ019 |
| Product Applications | Suitable for CR1220 batteries | Encapsulation | DIP |
| Plastic | PBT | ||
| Hardware material | STEEL | ||
| Plating treatment | Ni Plating | ||
| Packing specifications | 100PCS/ plate *25/ dozen *2/ dozen =5000PCS/ box | ||
| Gross weight of the product | 5.80KGS | ||
| Net weight of the product | 3.50KGS | ||
| Box size | 40CM*28CM*17CM | ||

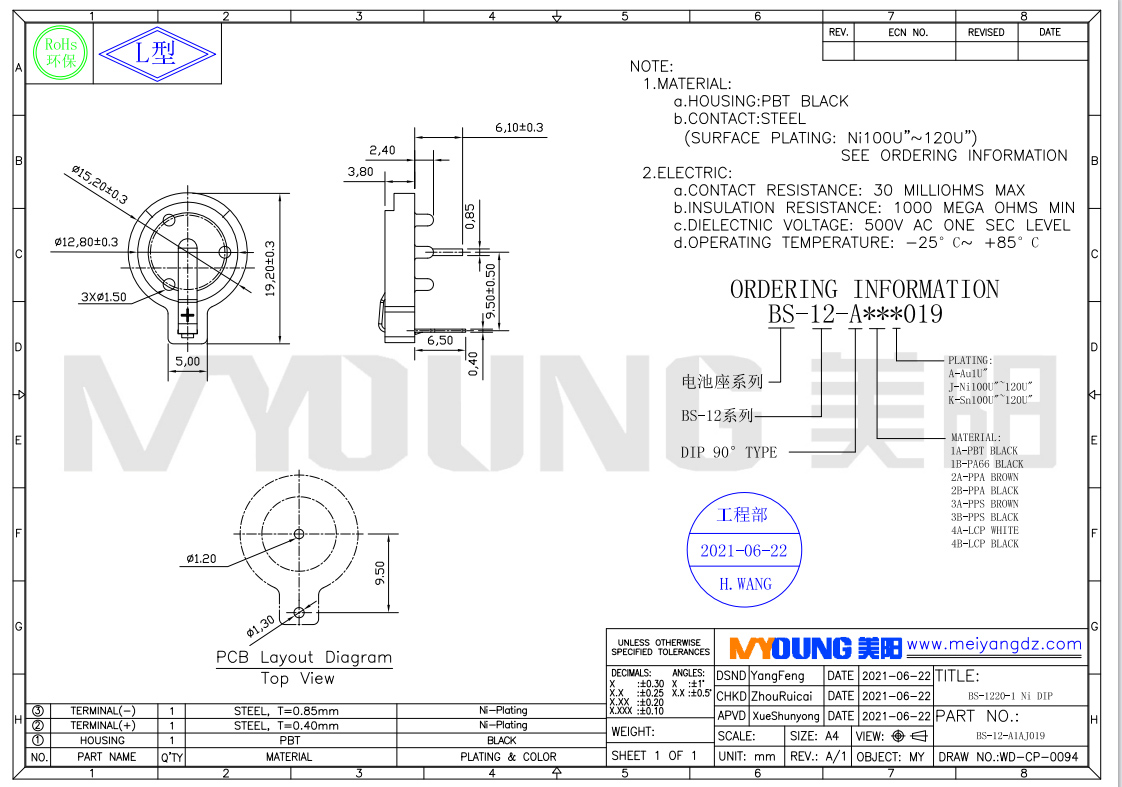

Product drawings
